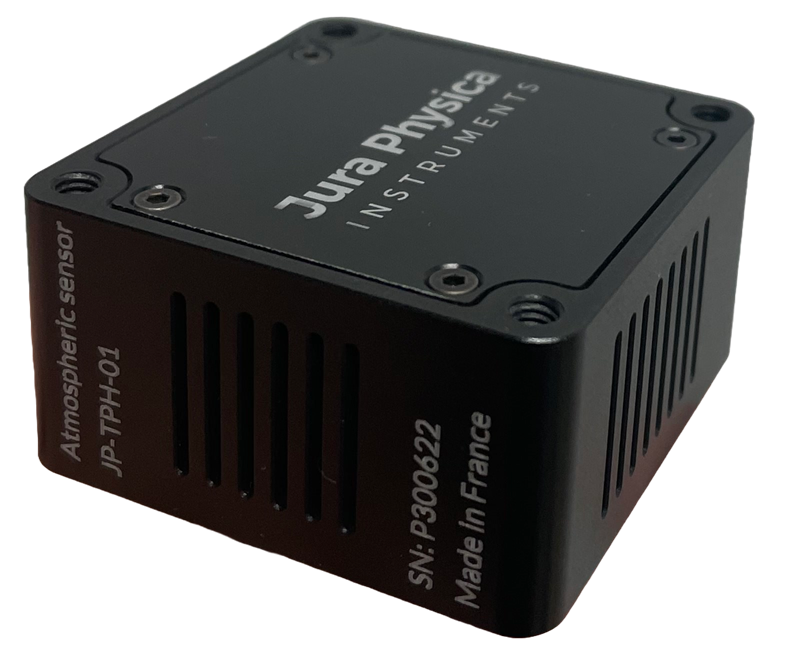

The JP-TPH-01 sensor for temperature, pressure, and humidity improves your system's accuracy. By compensating for the refractive index of the surrounding air, it enables precise adjustment of the He-Ne beam wavelength from the 5517B laser head. When connected to the JP-LEN-01, it delivers real-time data on temperature, pressure and humidity for wavelength correction.

General

• Temperature accuracy: ±1.0 K

• Pressure accuracy: ±1 hPa

• Humidity accuracy: ±3% RH (relative humidity)

• Measurement frequency: 5 seconds

• Mass: 70 g

The JP-TPH-01-CA-300 is a power and communication cable connecting the JP-TPH-01 to the JP-LEN-01 encoder and power supply unit.
