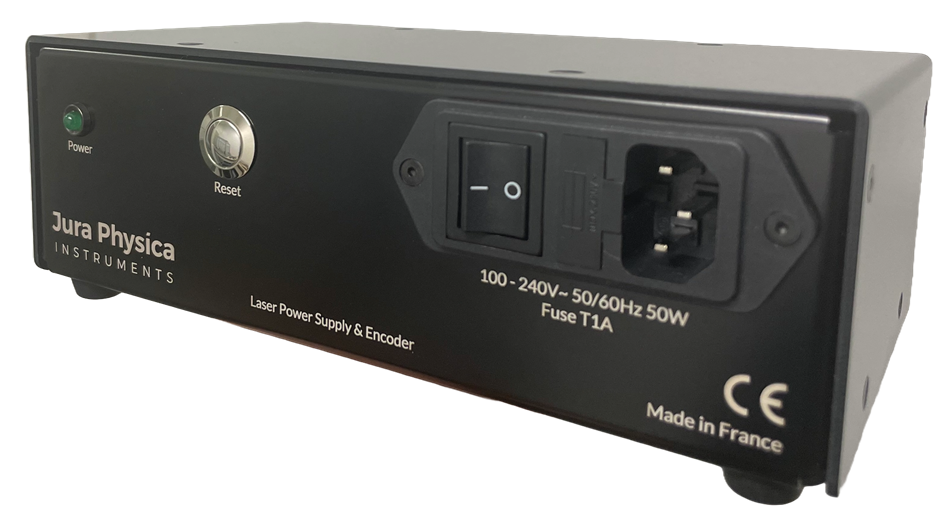

The JP-LEN-103 is a heterodyne interferometer encoder and laser power supply. This device offers a resolution of 0.6 nm for displacement measurements, making it ideal for high-precision applications in scientific research and industrial processes.

General

• Mass: 1220 g

• Electrical power consumption: 50 W

• Input voltage: 100-240 V~

• Communication: USB

• Number of measuring channels: 3

• Data rate: 610 Hz

• Resolution: 0.6 nm with a PMI

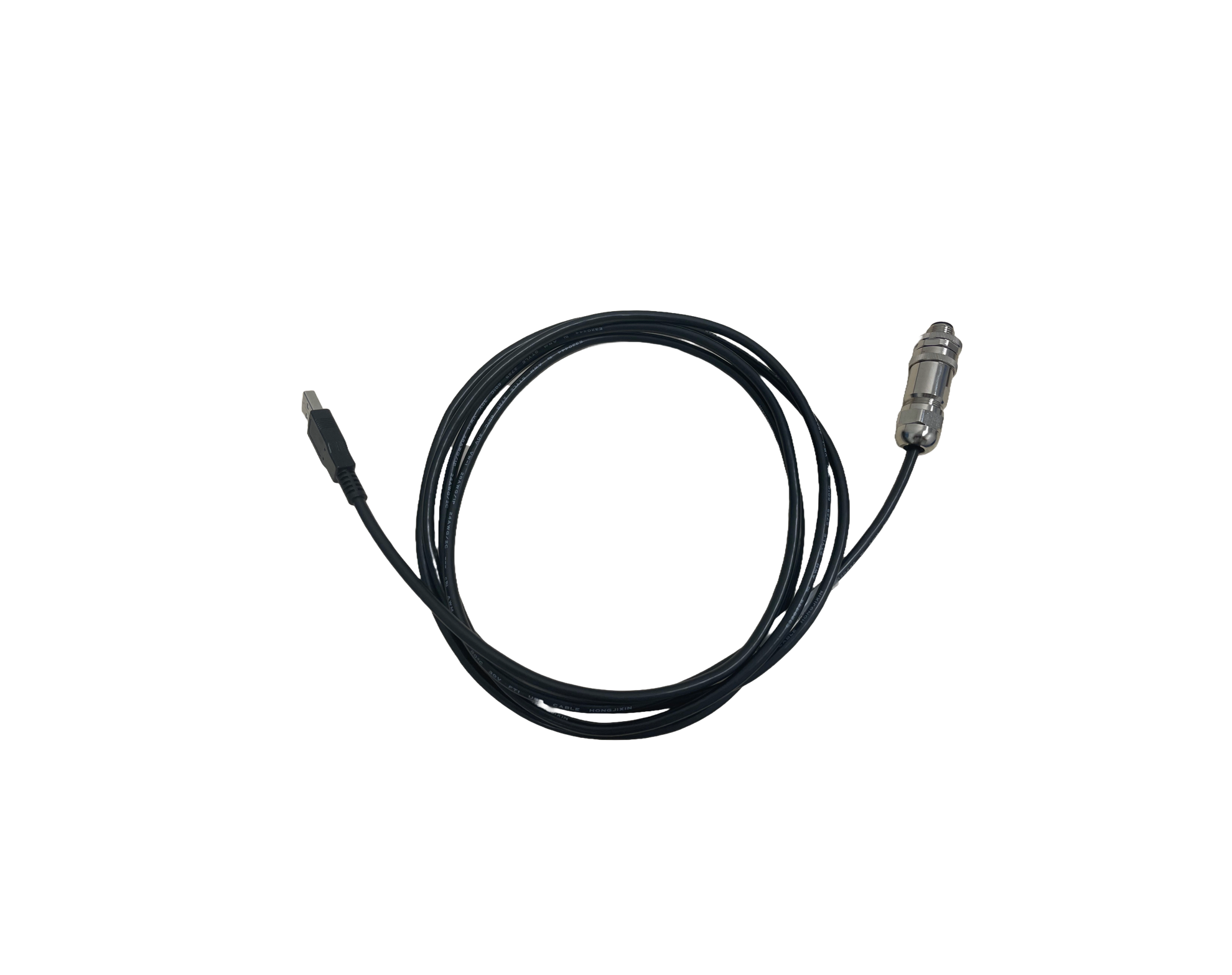

The JP-LEN-103-CA is a USB serial communication cable. The M12 side securely connects to the JP-LEN-103 and the USB-A side to your device.
